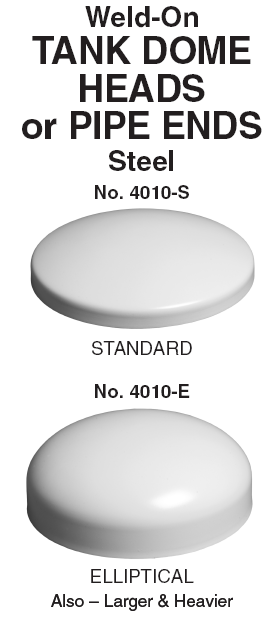

Weld-On Tank Dome Heads or Pipe Ends

(Pg. 34 of Catalog)

SIZE ELLIP. GA. ELLIP. WT. STAND. GA. STAND. WT
6 10 2.5 10 1.5
8 10 4 10 3
10 10 6 10 5
12 10 8.5 10 6
12 1/4 18
14 1/4 26 10 7.8
16 1/4 29 10 10
18 1/4 32 10 13
20 1/4 39 10 16
22 1/4 47 10 20
24 1/4 56 10 24
26 1/4 66 10 28
30 1/4 86 10 39
36 1/4 118 10 46

Standard Dome Pricing Availabe.
