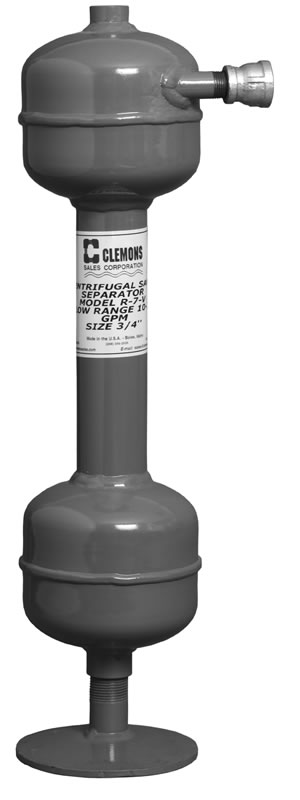

Clemons Vertical In-Line Sand Separators (Steel)

(Pg. 20 of Catalog)

MODEL

FLOW GPM

M3/Hr

SIZE

LENGTH

LBS.

R5V
R7V
R10V
R12V
R15V
R20V
R25V
R30V
R40V

4-10
10-20
18-38
26-52
38-79
63-120
100-180
125-260
190-345

.9-2.3
2.3-4.6
4-8.7
6-12
8.7-18
14.5-27.6
23-41.4
28.7-59.8
43.7-79.4

   1/2"
   3/4"
      1"
1 1/4"
1 1/2"
      2"
2 1/2"
      3"
      4"

20"
20"
30 1/2"
30 1/2"
30 1/2"
36"
44"
48"
52"

13
15
26
26
26
44
55
75
120


Product Description:
Clemons Sand Separator Accessories

2 Steel straps for Models R7V-R40V Separators for mounting on wall
Legs for R7V-R40V Separators for self standing
Manual Purge Valve & Fitting for Model R5V-R15V Separators (1" Nipple and Ball Valve)
Manual Purge Valve & Fittings for Model R20V-R40V Separators (2" Nipple and Ball Valve)
Auto Controller & Purge Valve (Electric) – 2" New Style Valve
Controller Only
2" Purge Valve Only New Style Valve
Auto Controller & 2" Motorized Ball Valve
Copper tube and brass fittings necessary for proper installation for above valve and controller supplied at no charge when ordered with separator.
