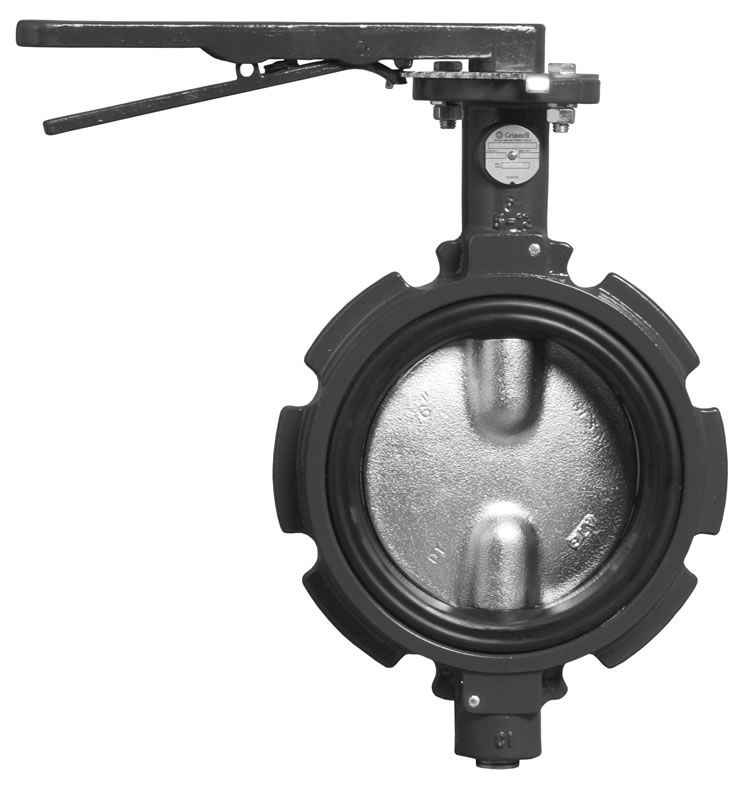

Lever Op Grinnell Butterfly Valve
(Pg. 21 of Catalog)
• Premium Quality
• Pressure – 250 lbs. PSI 2" - 12"
• Pressure – 150 lbs. PSI 14" - 24"
• Body – Cast Iron
• Disc – Replaceable Ductile Iron
• Heavy Gears
• Brass Bearings – Top & Bottom
• EPDM Standard Seat
• Seal Ring – Replaceable Buna N or EPDM
• Steam – Stainless Steel
• Gear Drive – Weatherproof
• Stock – 2" thru 24"
• Operators – Square Nut – Hand Wheel Lever Lock
• "O" Ring Seals
| SERIES |
SIZE |
WT. |
WIDTH |
WEIGHT |
| 8000 |
2" |
10 |
1.69" |
19 |
| 8000 |
3" |
12 |
1.75" |
21 |
| 8000 |
4" |
16 |
2.06" |
25 |
| 8000 |
5" |
23 |
2.12'" |
31 |
| 8000 |
6" |
25 |
2.12" |
33 |
| 8000 |
8" |
45 |
2.38" |
63 |
| 8000 |
10" |
65 |
2.69" |
83 |
| 8000 |
12" |
95 |
3.06" |
113 |
| 8000 |
14" |
164 |
3.06" |
175 |
| 8000 |
16" |
201 |
4.00" |
212 |
| 8000 |
18" |
246 |
4.50" |
302 |
| 8000 |
20" |
371 |
5.00" |
427 |
| 8000 |
24" |
535 |
6.00" |
545 |
|
